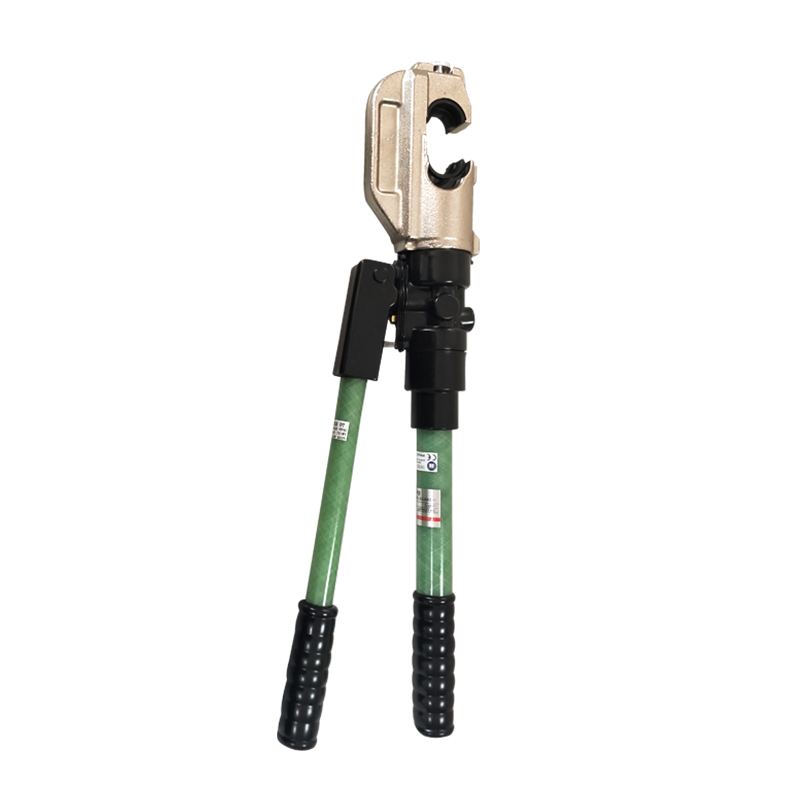

EP-510 Hydraulic Manual Cable Lug Crimping Capacity Up To 400mm²

The EP-510 Hydraulic Manual Cable Lug Crimping Tool is a powerful and reliable tool designed for crimping cable lugs. It has a high crimping capacity of up to 400mm², making it suitable for a wide range of cable sizes and applications.
Manufactured with precision and durability in mind, this crimping tool is built to withstand heavy-duty use. Its hydraulic mechanism ensures a strong and secure crimping connection, providing conductivity and reliability.
The EP-510 is designed with user-friendly features, including an ergonomic handle for comfortable operation and a convenient release button for easy removal of crimped lugs. It also has a built-in pressure relief valve to prevent over-crimping and ensure consistent results.
This manual hydraulic crimping tool is suitable for use in various industries, including electrical, telecommunications, and automotive. It is an essential tool for electricians, technicians, and professionals who frequently work with cable lugs.
With the EP-510 Hydraulic Manual Cable Lug Crimping Tool, you can confidently achieve professional-quality crimps efficiently and effectively. Its robust construction and reliable performance make it a valuable addition to any toolkit.
Contact Us
PREV：JY-0650/0650A Mechanical Cable Lug Manual Crimper Terminal Crimping ToolNEXT：No next article
Products Features

EASY TO CUT

PROVIDING THE PRODUCTS WITH COST PERFORMANCE

Product Parameters
Model EP-510
Crimping Range Cu 50-400mm²
Crimping force 130KN
Crimping type Hexagon
Stroke 38mm
Oil capacity 200CC
Weight: 6.8kg
Standard accessories 50, 70, 95, 120, 150, 185, 240, 300, 400mm2
Product Details

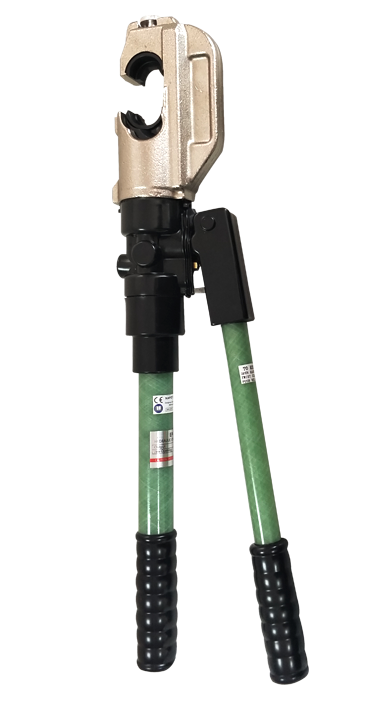

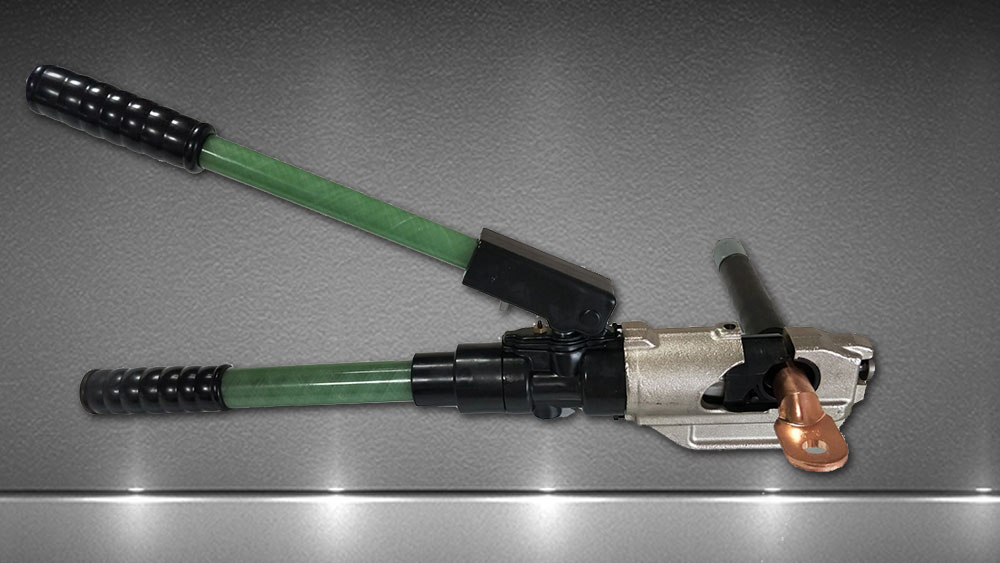

1. C-shape head design

It is convenient to put and remove the terminal, the upper die is fixed by the bayonet lock, the lower die is fixed by the marbles, and the die is clamped against the marbles to prevent it from falling off during the decompression process. The mold can be removed by pushing with your hand.

2. Die change switch

When the pressure is completed, turn the handle 45°clockwise, close the handle, and top return the oil valve switch to return the lower die.

3. Insulated handle

withstand voltage 20KV for five minutes.

4. Big piston core: double speed design of oil return valve switch

With two-stage hydraulic technology, low speed, high slowness, and no load, pressing dies quickly press to the position of the copper and aluminum nose. When the pressure begins to increase, turn to slow speed until the copper and aluminum nose is crimped.

5. Insulated and shockproof packing

Thickened plastic packaging makes it easy to carry.
