Wholesale XLJ-D-300 Electric Ratchet Armored Cu-Al Cable Cutting Tool Supplier

Product
Taizhou Naibo Machinery Co., Ltd. Home / Products / Ratchet Cable Cutter / Armored Cu-Ai Cable Cutter / XLJ-D-300 Electric Ratchet Armored Cu-Al Cable Cutting Tool
  • XLJ-D-300 Electric Ratchet Armored Cu-Al Cable Cutting Tool

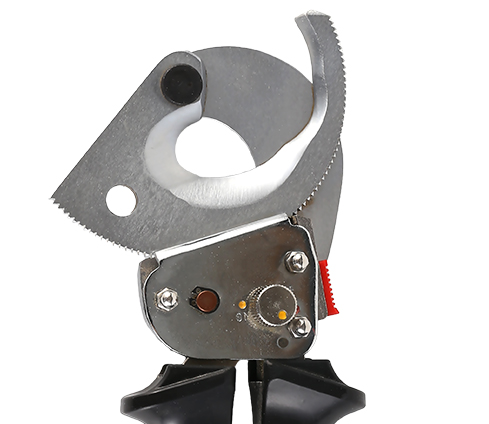

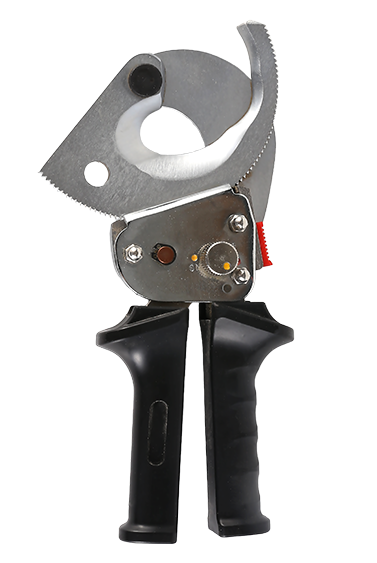

XLJ-D-300 Electric Ratchet Armored Cu-Al Cable Cutting Tool

The XLJ-D-300 Electric Ratchet Armored Cu-Al Cable Cutting Tool is a powerful and efficient tool designed for cutting armored copper and aluminum cables. This tool is specifically engineered to handle the challenging task of cutting through tough and thick cables with ease and precision.
The electric ratchet arm of this cutting tool provides additional power and control, enabling smooth and hassle-free cable cutting. The ratchet mechanism ensures precise and clean cuts, reducing the risk of damage or fraying to the cables.
Equipped with a sharp and durable cutting blade, the XLJ-D-300 can effortlessly slice through armored cables without exerting excessive force. This helps to minimize operator fatigue and increase overall productivity.
The tool is designed to handle cables with a diameter of up to 300mm. It is versatile and suitable for cutting various types of armored cables, including those used for power transmission, telecommunications, and construction applications.
Safety is always a priority when working with cutting tools, and the XLJ-D-300 Electric Ratchet Armored Cu-Al Cable Cutting Tool takes that into consideration. It comes with ergonomic handles that provide a comfortable grip and reduce the risk of hand fatigue. The tool also includes safety features such as a blade lock and a protective guard to ensure the operator's safety during operation.
The XLJ-D-300 Electric Ratchet Armored Cu-Al Cable Cutting Tool is a reliable and efficient tool for professionals working with armored cables. Its electric ratchet arm, sharp cutting blade, and safety features make it an ideal choice for various industries where cutting armored cables is a common task.
Contact Us
PREV：J-40A Power Construction Tools Hand Ratchet Cable Cutter For 300mm² Copper & Aluminum CableNEXT：CC-325 Multi Function 240mm² Heavy Duty Electric Cable Cutting Tool Ratchet Cable Cutter
Products Features

The Cable cutters are commonly used in electrical construction. It is suitable for cutting off Copper and aluminum wires and cables. The section is round and does not fall apart.

This product is made according to the principle of mechanical increasing force, with exquisite structure, lightweight, small size, single hand operation, simple and light, good cutting quality, strong and durable.

EASY TO CUT

PROVIDING THE PRODUCTS WITH COST PERFORMANCE

Product Parameters

Model

XLJ-D-300

Cutting Range

Cu/Al cable ≤300mm2

Weight

1kg

Size

230×100×40mm
Product Details

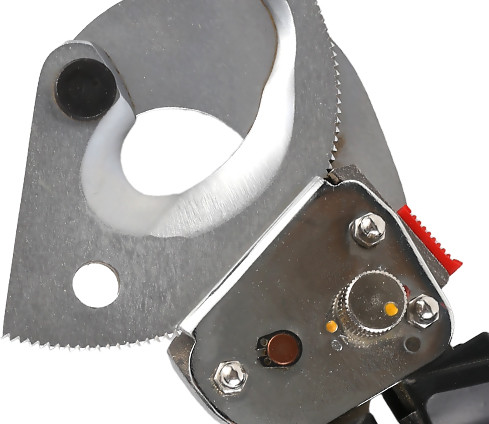

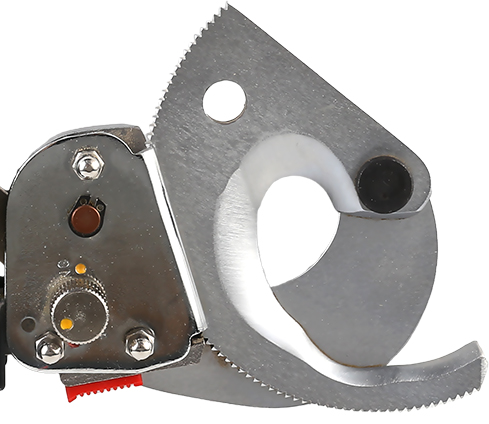

1. BLADE

60si2Mn material adopted and processed multiple, the blades are sharp and durable in use.

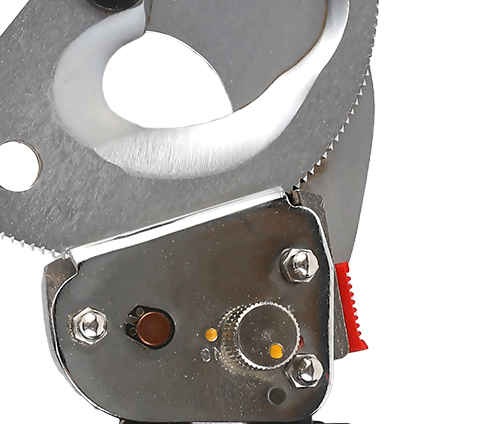

2. Handle lock

At the end of work, turn the lock switch, make the yellow dot align with the red dot on the panel, and lock the handle to prevent shaking.

3. BREAK SWITCH

If you want to stop cutting the cable during the cutting process or finish cutting, lift up the brake switch, and let the movable handle open freely, then retract the movable blade.

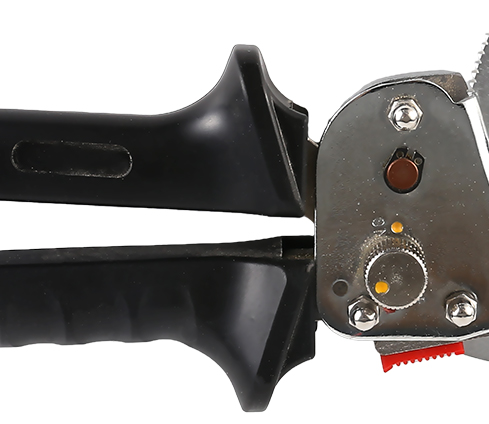

4. Seamless Chrom plated inner tube

The hardness and abrasion resistance of the handle is increased, so that the handle is not easy to deform, and is durable in use.

5.12.9 GRADE SCREWS

The hardness of the screw is 39-44HRC. The min. tensile strength is 1220Mpa
