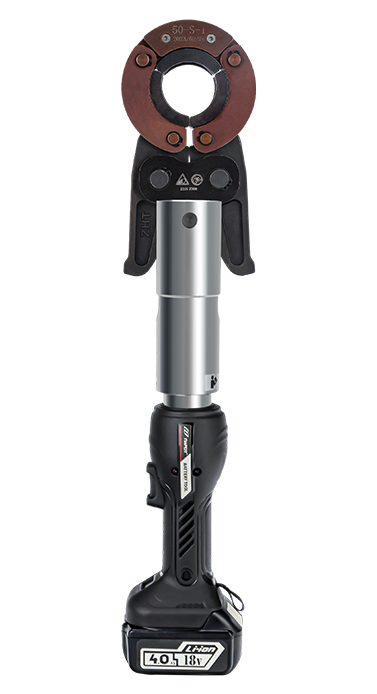

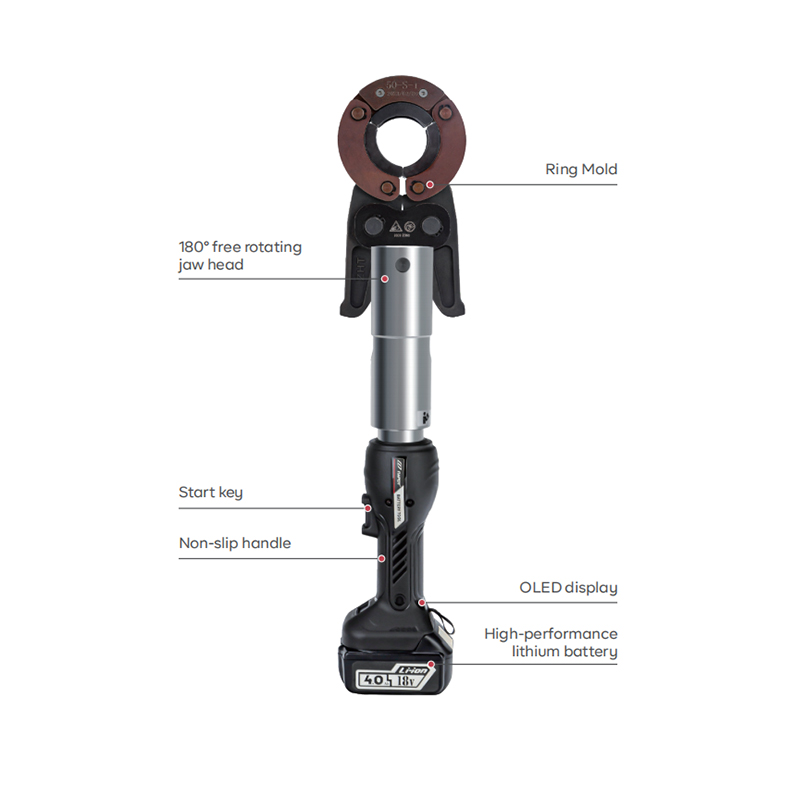

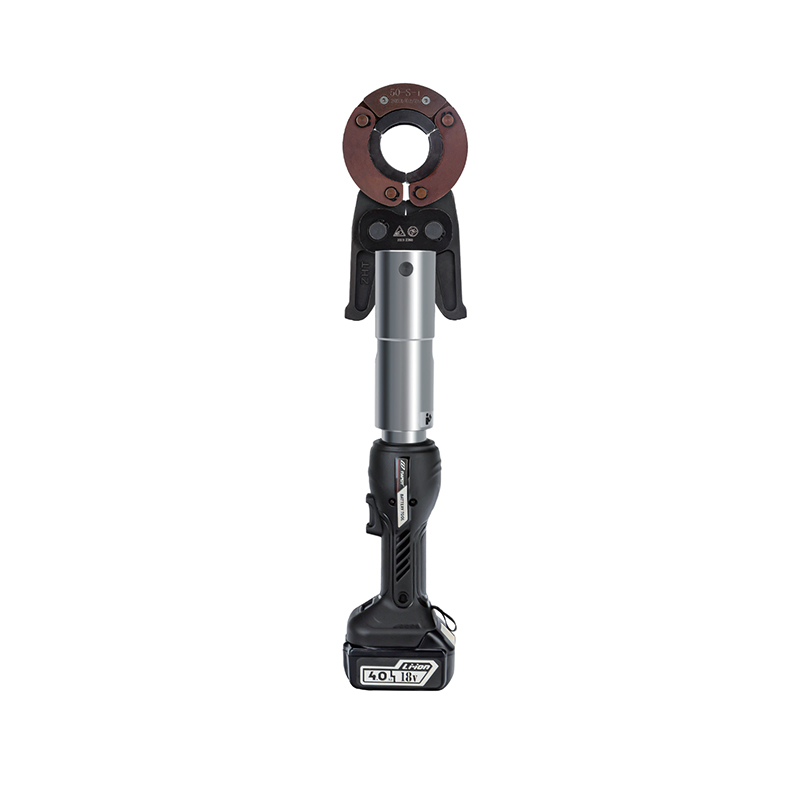

EP-1550 Two-Stage Hydraulic System Battery Hydraulic Pipe Crimping Tool

● The two-stage hydraulic system enables rapid advancement in the absence of pressure and accelerates after pressure contact, significantly reducing operational time.
● Featuring an automatic reset, it depressurizes automatically after completing the pipe pressing, with the piston rapidly retracting to the initial position.
● Faults trigger a red LED display and an audible signal.
● Powered by a robust high-capacity 18V lithium battery, it provides a low battery warning when power is insufficient.
Contact Us
PREV：EP-1525 Exceeding 10000 Lifespan Cycles Battery Hydraulic Pipe Crimping ToolNEXT：No next article
Products Features

Product Parameters
Technical parameters

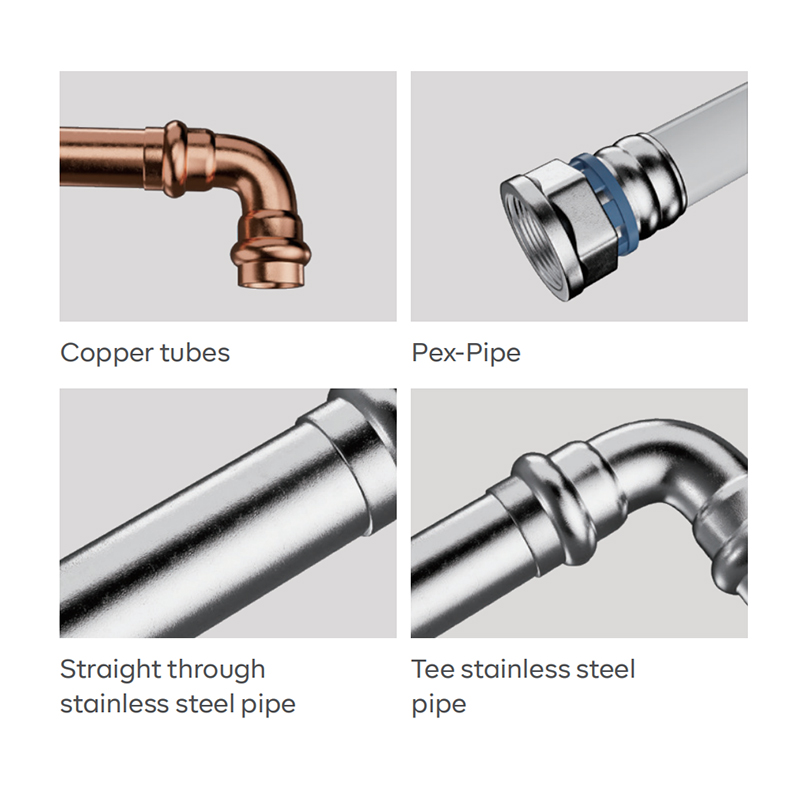

Clamping range Thin-walled stainless steel pipe 15-54mm Battery 18V 4.0Ah lithium battery
PEX PIPE 16-32mm Input Voltage 100-220V
Output 3.2T Weight 2.45kg (Bare metal)
Stroke 36.5mm Size 395*94*76mm(Bare metal)
Crimping dies
PEX: TH16,20,25,26,32MM;   U16,20,25,32MM
Stainless steel pipe V15,18,22,28,35,42,54mm; DN15,20,25,32,40,50MM

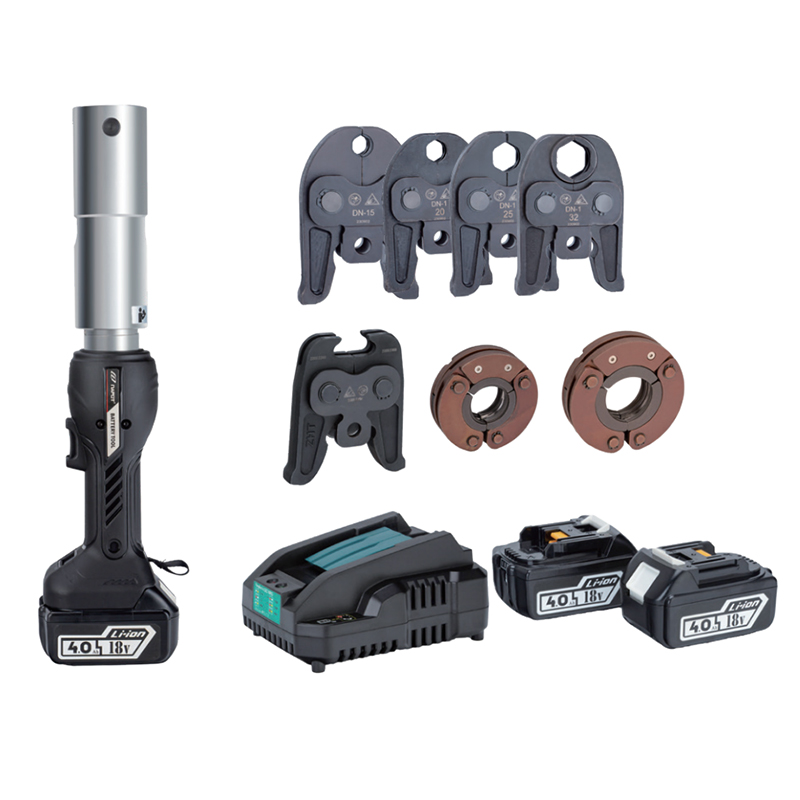

Product Accessories
Model Name Weight
EP-1550 EP-1550 Clamping tool set (without calipers) 2.45kg
18V 4.0Ah lithium battery x2 0.5kg*2
